第三方数据FVP : RAD13080

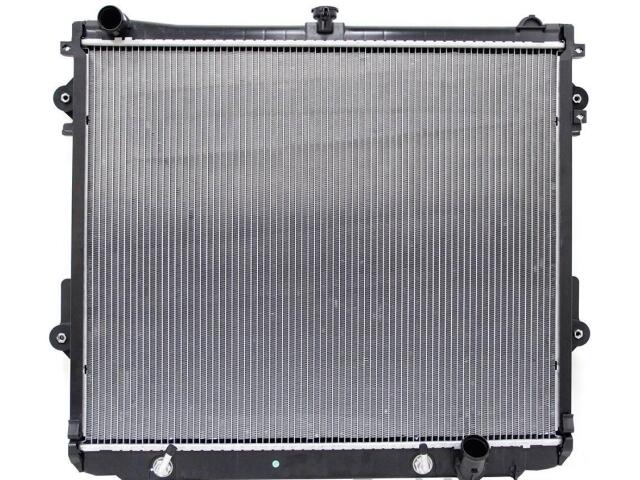

Radiator
FVP : RAD13080

Core Height: 23-1/4 (IN)
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 48 (MM)
Core Width: 28 (IN)
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter: 1-1/2 (IN)
Inlet Header Length: 28-13/16 (IN)
Inlet Header Width: 2-7/8 (IN)
Outlet Diameter: 1-5/8 (IN)
Outlet Header Length: 28-13/16 (IN)
Outlet Header Width: 2-7/8 (IN)
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings: 15-3/8 (IN)
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 10

适用车型

LEXUS (1)

TOYOTA (1)

OE号码

品牌	号码
OE	164005038*
OE	164005038*

品牌	号码
OE	164005038*
OE	164005038*

品牌	号码
OE	164005038*
OE	164665037*
