ASTRA
84653006

第三方数据ASTRA : 84653006

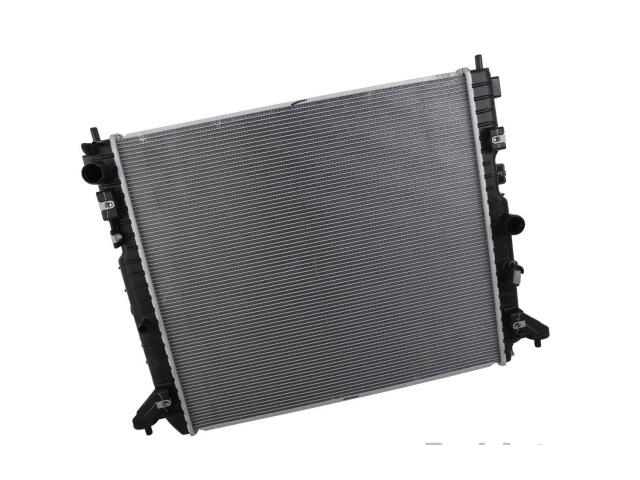

Radiator
ASTRA : 84653006

Core Height (IN): 20.88
Core Height (MM): 530.35
Core Material: Aluminum
Core Thickness (IN): 1.38
Core Thickness (MM): 35.02
Core Width (IN): 22.99
Core Width (MM): 584
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Height (IN): 7.3
Inlet Diameter (IN): 1.4
Inlet Diameter (MM): 35.63
Inlet Header Length (IN): 21.93
Inlet Header Length (MM): 557.13
Inlet Header Width (IN): 2.36
Inlet Header Width (MM): 60.03
Inlet Location: Upper Left
Length (IN): 38.3
Mounting Type: Pin
Outlet Diameter (IN): 1.4
Outlet Diameter (MM): 35.63
Outlet Header Length (IN): 21.93
Outlet Header Length (MM): 557.13
Outlet Header Width (IN): 2.36
Outlet Header Width (MM): 60.06
Outlet Location: Middle Right
Programming Required: No
Tank Material: Plastic
Transmission Oil Cooler Included: No
Weight (lb): 11.84
Width (IN): 25

适用车型

CADILLAC (1)
