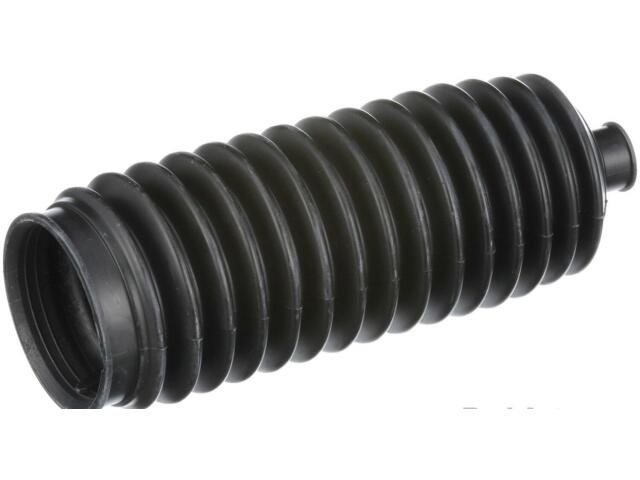

Rack and Pinion Bellow
DELPHI : TBR5029

Bellows Color: Black
Bellows End 1 Inside Diameter (IN): 0.551
Bellows End 1 Inside Diameter (mm): 14.0
Bellows End 2 Inside Diameter (IN): 2.086
Bellows End 2 Inside Diameter (mm): 53.0
Bellows Extended Length (IN): 8.24
Bellows Extended Length (MM): 209.5
Bellows Material: Rubber
Bellows Material Thickness (IN): 0.066
Bellows Material Thickness (mm): 1.7
Bellows Rib Quantity: 15
Length (MM): 209.3
Mounting Hardware Included: Yes
Position(s): Front Left, Front Right. For the position specific to your vehicle, refer to the Application tab.

ACURA (1)

厂商	号码
BECK/ARNLEY	103-307*
MAS INDUSTRIES	RPK5805*

厂商	号码
MAS INDUSTRIES	RPK58055P*
MOOG	K15028*

厂商	号码
TRW AUTOMOTIVE	JBE40*

品牌	号码
TOYOTA	53534SJAA0*
