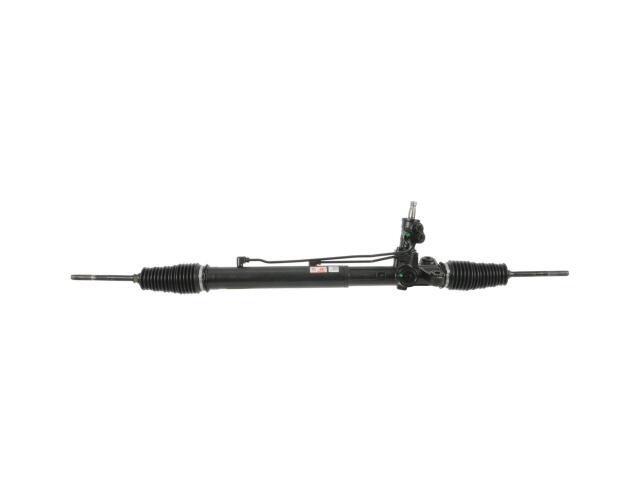

Rack and Pinion
CARDONE : 262447

Casting Material: Steel; Aluminum
Distance Between Mounting Holes (IN): 3.50
Distance Between Mounting Holes (MM): 88.90
Hose Port Type: O-Ring
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.00
Input Shaft Length (IN): 1.69
Input Shaft Length (MM): 42.86
Number of Mounting Holes: 2
Package Contents: Rack and Pinion, Sealing Kit, Instruction Sheet
Pressure Port Thread Size: M16 x 1.5
Rack Length (IN): 47.25
Rack Length (MM): 1200.15
Return Port Thread Size: M16 x 1.5
Steering Rack Color: Black
Thread Length (IN): 1.93
Thread Length (MM): 48.97
Tie Rod Ends Included: Yes
Total Turns Lock To Lock: 3

适用车型

HYUNDAI (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	AA126244*

OE号码

品牌	号码
OE	26-244*
OE	26244*

品牌	号码
OE	572243M90*
OE	577003M76*

品牌	号码
OE	577003M96*
OE	93366*
