第三方数据CARDONE : 262081

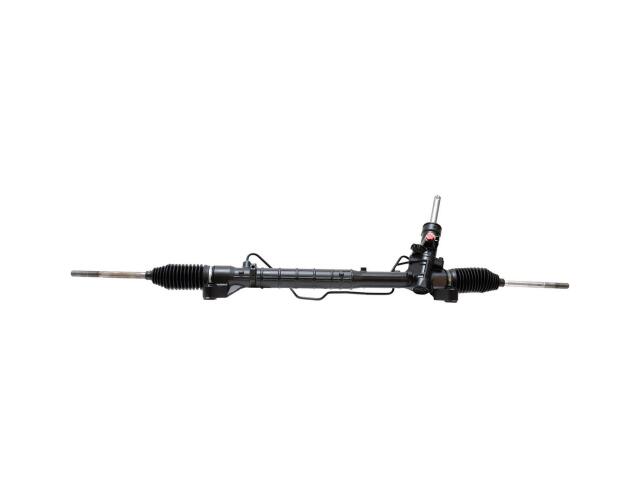

Rack and Pinion
CARDONE : 262081

Casting Material: Aluminum
Distance Between Mounting Holes (IN): 23.00
Distance Between Mounting Holes (MM): 584.20
Hose Port Type: O-Ring
Input Shaft Diameter (IN): 0.729
Input Shaft Diameter (MM): 18.52
Input Shaft Length (IN): 4.26
Input Shaft Length (MM): 108.23
Number of Mounting Holes: 2
Package Contents: Rack and Pinion, Instruction Sheet
Pressure Port Thread Size: M16 x 1.5
Rack Length (IN): 50.625
Rack Length (MM): 1285.87
Return Port Thread Size: M14 x 1.5
Steering Rack Color: Black
Thread Length (IN): 2.605
Thread Length (MM): 66.17
Tie Rod Ends Included: Yes
Total Turns Lock To Lock: 2.93

适用车型

MAZDA (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	AA126208*

OE号码

品牌	号码
OE	26-208*

品牌	号码
OE	93474*

品牌	号码
OE	CG1532110*
