CARDONE
231010

第三方数据CARDONE : 231010

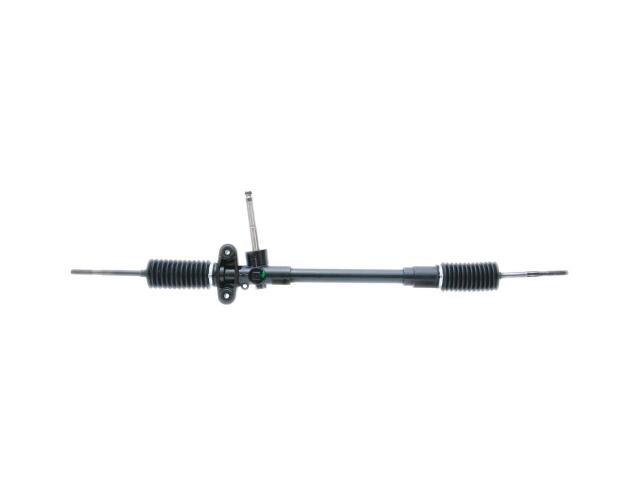

Rack and Pinion
CARDONE : 231010

Casting Material: Aluminum
Distance Between Mounting Holes (IN): 3.500
Distance Between Mounting Holes (MM): 88.90
Input Shaft Diameter (IN): 0.666
Input Shaft Diameter (MM): 16.94
Input Shaft Length (IN): 8.256
Input Shaft Length (MM): 209.71
Installation Hardware Included: No
Number of Mounting Holes: 2
Package Contents: Rack and Pinion, Installation Instructions
Rack Length (IN): 43.000
Rack Length (MM): 1092.20
Steering Rack Color/Finish: Black
Thread Length (IN): 1.836
Thread Length (MM): 46.63
Tie Rod Ends Included: Inner
Total Turns Lock To Lock: 4.31

适用车型

PONTIAC (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	AA123101*

OE号码

品牌	号码
OE	9648290*
