CARDONE
22396

第三方数据CARDONE : 22396

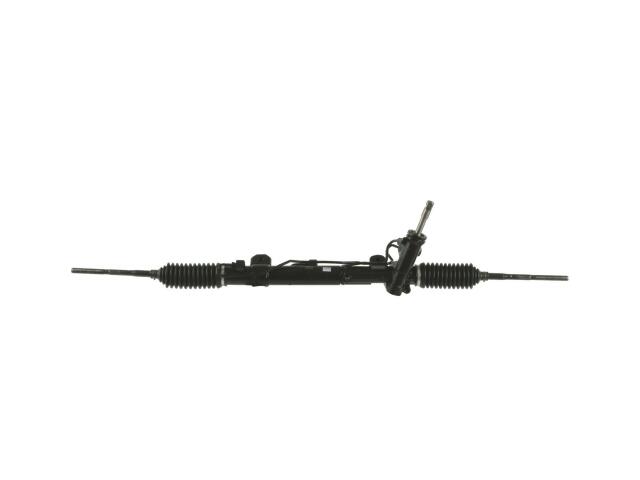

Rack and Pinion
CARDONE : 22396

Casting Material: Steel; Aluminum
Distance Between Mounting Holes (IN): 11.25
Distance Between Mounting Holes (MM): 285.75
Hose Port Type: O-Ring
Input Shaft Diameter (IN): 0.71
Input Shaft Diameter (MM): 17.93
Input Shaft Length (IN): 3.33
Input Shaft Length (MM): 84.66
Number of Mounting Holes: 2
Package Contents: Rack and Pinion, Sealing Kit, Instruction Sheet
Pressure Port Thread Size: M18 x 1.5
Rack Length (IN): 47.38
Rack Length (MM): 1203.33
Return Port Thread Size: M16 x 1.5
Steering Rack Color: Black
Thread Length (IN): 3.14
Thread Length (MM): 79.71
Tie Rod Ends Included: Yes
Total Turns Lock To Lock: 2.56

适用车型

DODGE (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	AA122-39*

OE号码

品牌	号码
OE	5290935A*

品牌	号码
OE	5290935A*
