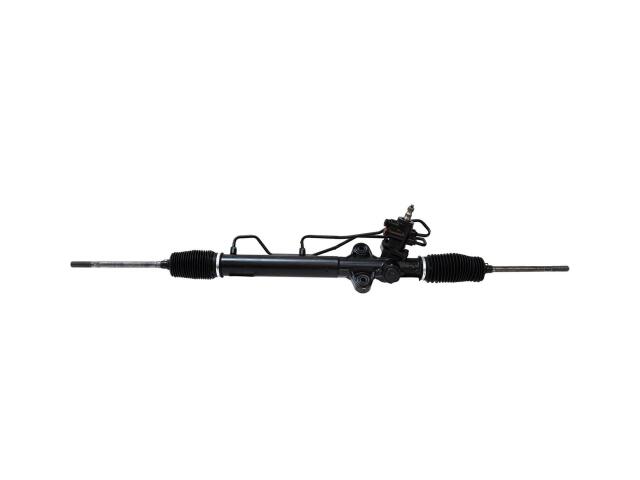

Rack and Pinion
CARDONE : 223039

Casting Material: Steel; Aluminum
Distance Between Mounting Holes (IN): 3.812
Distance Between Mounting Holes (MM): 96.82
Hose Port Type: O-Ring
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.02
Input Shaft Length (IN): 1.312
Input Shaft Length (MM): 33.33
Number of Mounting Holes: 2
Package Contents: Rack and Pinion, Mounting Bushing Assembly, Sealing Kit, Installation Instructions
Pressure Port Thread Size: M14 x 1.5
Rack Length (IN): 50.250
Rack Length (MM): 1276.35
Return Port Thread Size: M16 x 1.5
Steering Rack Color: Black
Thread Length (IN): 1.739
Thread Length (MM): 44.17
Tie Rod Ends Included: Yes
Total Turns Lock To Lock: 3.12
