BBB INDUSTRIES
N3100203

第三方数据BBB INDUSTRIES : N3100203

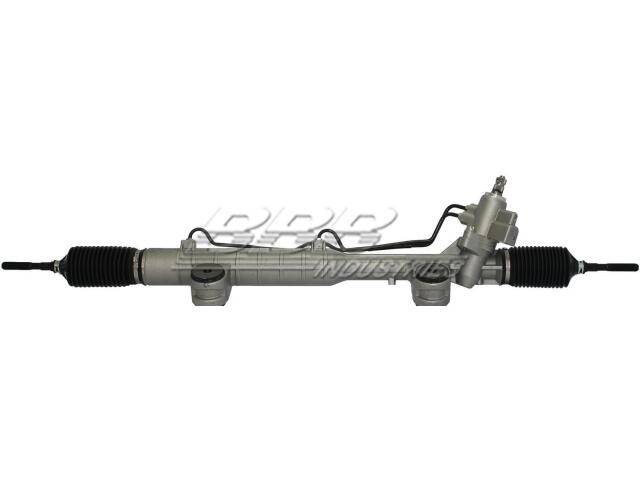

Rack and Pinion
BBB INDUSTRIES : N3100203

Bushings Included: Yes
Distance Between Front Mounting Holes (In): 14
Distance Between Front Mounting Holes (mm): 357
Distance Between Mounting Holes (IN): 14.125
Distance Between Mounting Holes (MM): 358.775
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rod Length (In): 7
Inner Tie Rod Length (mm): 180
Inner Tie Rod Size: M14x1.50
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.68
Input Shaft Diameter (MM): 17.3
Input Shaft Length (IN): 1.1
Input Shaft Length (MM): 29.5
Input Shaft Spline Count: 36
Installation Kit Included: Yes
Mounting Hole Quantity: 2
New Or Remanufactured: New
Outer Tie Rods Included: No
Pressure Port Attachment Type: O-Ring
Pressure Port Size: M14x1.50
Pressure Port Thread Size: M14x1.50
Rack Length (IN): 41.6
Rack Length (MM): 1058
Return Port Attachment Type: O-Ring
Return Port Size: M16x1.50
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.68

适用车型

INFINITI (1)

OE号码

品牌	号码
OE	1932094*

品牌	号码
OE	49001JK62*

品牌	号码
OE	49001JK62*
