BBB INDUSTRIES
N1030273

第三方数据BBB INDUSTRIES : N1030273

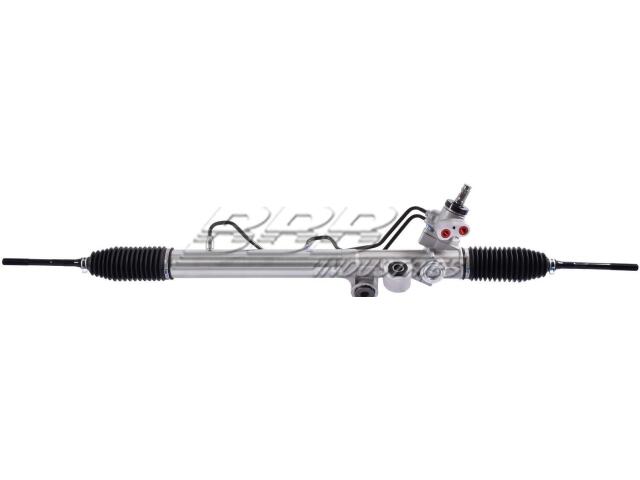

Rack and Pinion
BBB INDUSTRIES : N1030273

Bushings Included: Yes
Distance Between Mounting Holes (IN): 2.88
Distance Between Mounting Holes (MM): 73.152
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 1.875
Input Shaft Length (MM): 47.625
Mounting Hole Quantity: 2
New Or Remanufactured: New
Outer Tie Rods Included: No
Pressure Port Thread Size: 11mm
Rack Length (IN): 47.625
Rack Length (MM): 1209.675
Return Port Thread Size: 12mm
Total Turns Lock To Lock: 3.25

适用车型

HUMMER (1)

OE号码

品牌	号码
OE	N103-027*

品牌	号码
OE	1932056*

品牌	号码
OE	95486M*
