BBB INDUSTRIES
N1030264

第三方数据BBB INDUSTRIES : N1030264

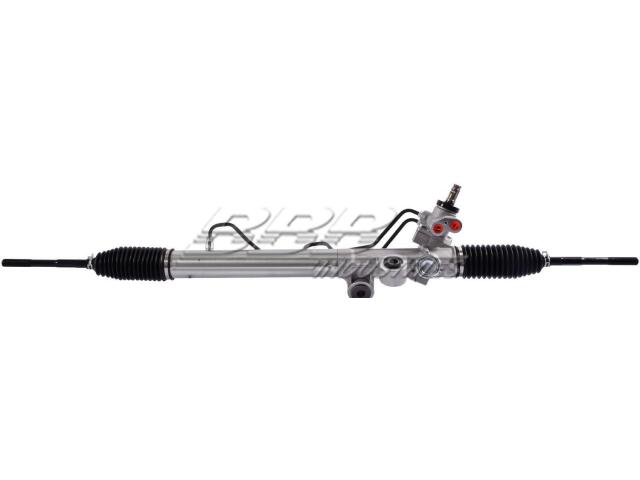

Rack and Pinion
BBB INDUSTRIES : N1030264

Bushings Included: Yes
Distance Between Mounting Holes (IN): 2.88
Distance Between Mounting Holes (MM): 73.152
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 1.875
Input Shaft Length (MM): 47.625
Mounting Hole Quantity: 2
New Or Remanufactured: New
Outer Tie Rods Included: No
Pressure Port Thread Size: 11mm
Rack Length (IN): 48.688
Rack Length (MM): 1236.663
Return Port Thread Size: 11mm
Total Turns Lock To Lock: 3.25

适用车型

HUMMER (2)

OE号码

品牌	号码
OE	N103-026*
OE	1932055*

品牌	号码
OE	9472546*

品牌	号码
OE	95466M*
