BBB INDUSTRIES
3130209

第三方数据BBB INDUSTRIES : 3130209

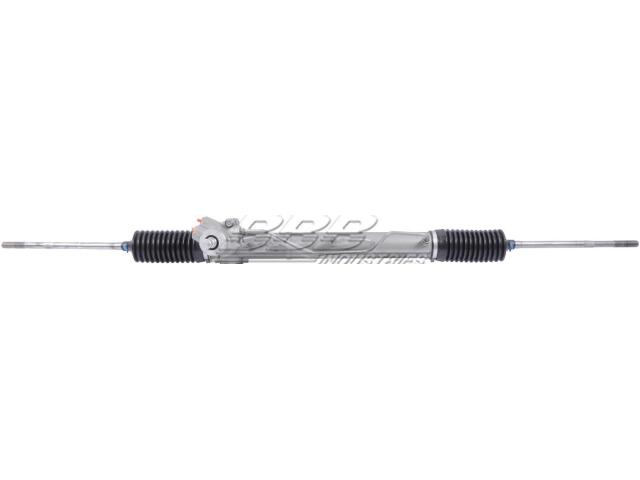

Rack and Pinion
BBB INDUSTRIES : 3130209

Bushings Included: No
Distance Between Mounting Holes (IN): 4.69
Distance Between Mounting Holes (MM): 119.126
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.625
Input Shaft Diameter (MM): 15.875
Input Shaft Length (IN): 1
Input Shaft Length (MM): 25.4
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M14x1.50
Rack Length (IN): 48.438
Rack Length (MM): 1230.313
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 3.125

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	313-020*
OE	3130209:*

品牌	号码
OE	1932118*

品牌	号码
OE	577242D00*
