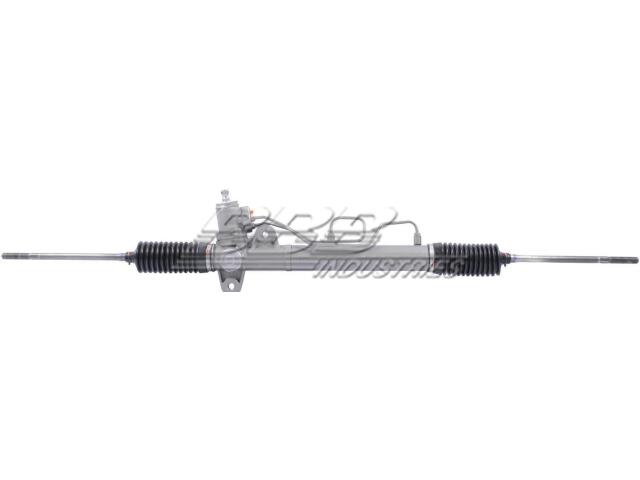

Rack and Pinion
BBB INDUSTRIES : 3130199

Bushings Included: No
Distance Between Mounting Holes (IN): 4.69
Distance Between Mounting Holes (MM): 119.126
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.625
Input Shaft Diameter (MM): 15.875
Input Shaft Length (IN): 1
Input Shaft Length (MM): 25.4
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M14x1.50
Rack Length (IN): 48.438
Rack Length (MM): 1230.313
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.813

适用车型

KIA (2)

OE号码

品牌	号码
OE	313-019*
OE	3130199:*

品牌	号码
OE	1932117*
OE	577002F10*

品牌	号码
OE	93156*
