BBB INDUSTRIES
3100217

第三方数据BBB INDUSTRIES : 3100217

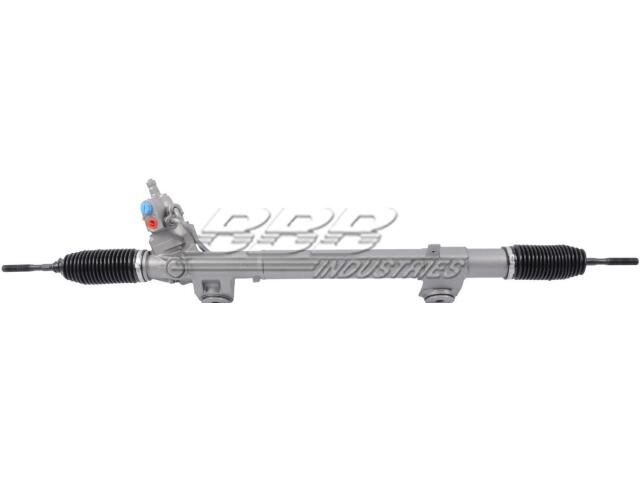

Rack and Pinion
BBB INDUSTRIES : 3100217

Bushings Included: No
Distance Between Mounting Holes (IN): 15.25
Distance Between Mounting Holes (MM): 387.35
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.684
Input Shaft Diameter (MM): 17.369
Input Shaft Length (IN): 1.25
Input Shaft Length (MM): 31.75
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: 16mmX1.5
Rack Length (IN): 44.25
Rack Length (MM): 1123.95
Return Port Thread Size: 14mmX1.5
Total Turns Lock To Lock: 2.94

适用车型

INFINITI (1)

OE号码

品牌	号码
OE	490011CA0*

品牌	号码
OE	490011CA0*

品牌	号码
OE	490011CA1*
