3080153,BBB INDUSTRIES BBBINDUSTRIES,Rack and Pinion-宜配网-专业汽配网

t a e

也可拖拽图片到此处自动识别，或在微信/QQ截图后点击此处后Ctrl+V

首页
第三方数据
BBB INDUSTRIES
3080153

第三方数据BBB INDUSTRIES : 3080153

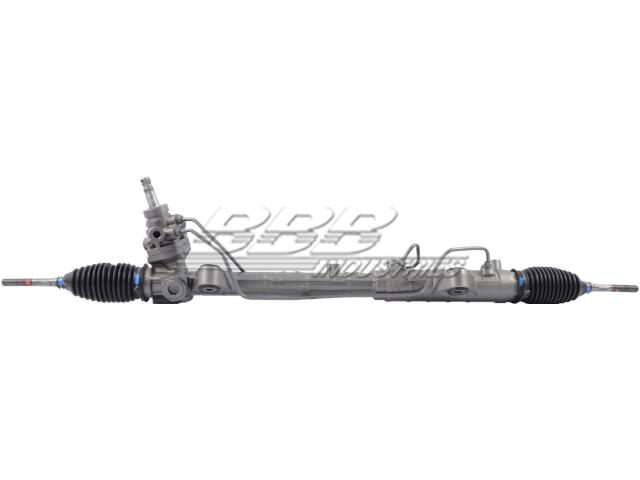

Rack and Pinion
BBB INDUSTRIES : 3080153

Bushings Included: Yes
Distance Between Mounting Holes (IN): 14.19
Distance Between Mounting Holes (MM): 360.426
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 2.62
Input Shaft Length (MM): 66.548
Mounting Hole Quantity: 3
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M14x1.50
Rack Length (IN): 44.625
Rack Length (MM): 1133.475
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.50

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	3080153:*
OE	308-015*

品牌	号码
OE	1932080*
OE	93212*

品牌	号码
OE	GP7C32110*
OE	GP7C32110R0*
