BBB INDUSTRIES
1030245

第三方数据BBB INDUSTRIES : 1030245

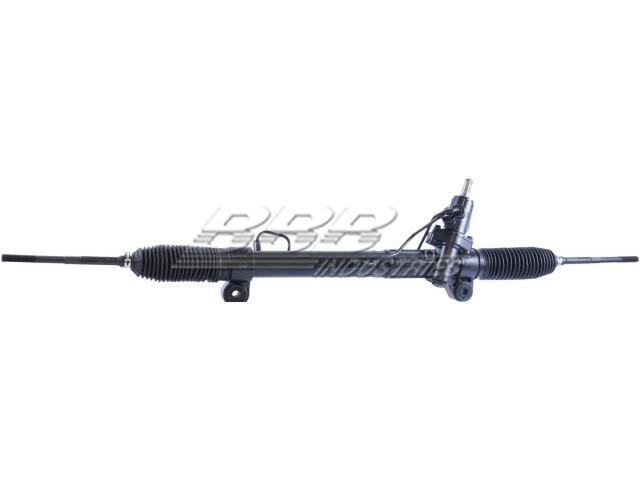

Rack and Pinion
BBB INDUSTRIES : 1030245

Bushings Included: Yes
Distance Between Mounting Holes (IN): 15.5
Distance Between Mounting Holes (MM): 393.7
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 1.563
Input Shaft Length (MM): 39.688
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M16x1.50
Rack Length (IN): 48.625
Rack Length (MM): 1235.075
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.688

适用车型

SATURN (1)

OE号码

品牌	号码
OE	103-024*

品牌	号码
OE	1925763*

品牌	号码
OE	1932053*
