BBB INDUSTRIES
1030191

第三方数据BBB INDUSTRIES : 1030191

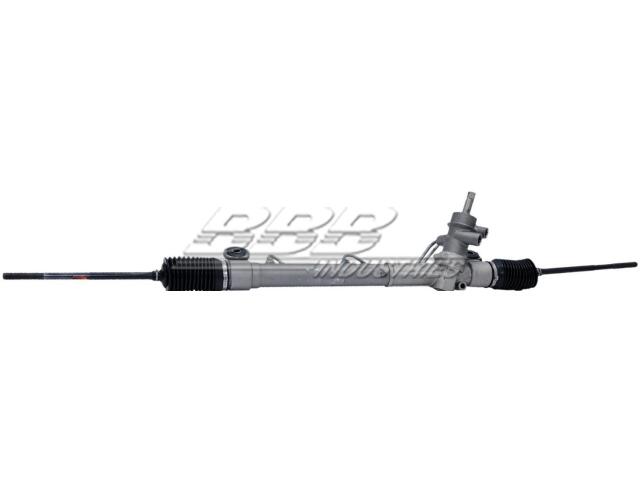

Rack and Pinion
BBB INDUSTRIES : 1030191

Bushings Included: Yes
Distance Between Mounting Holes (IN): 18.88
Distance Between Mounting Holes (MM): 479.552
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 2.125
Input Shaft Length (MM): 53.975
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M16x1.50
Rack Length (IN): 49
Rack Length (MM): 1244.60
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.875

适用车型

SATURN (1)

OE号码

品牌	号码
OE	103-019*

品牌	号码
OE	1932050*

品牌	号码
OE	2271109*
