BBB INDUSTRIES
1020278

第三方数据BBB INDUSTRIES : 1020278

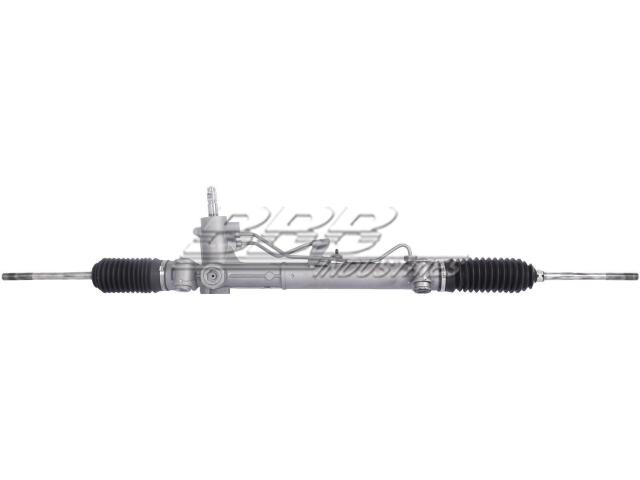

Rack and Pinion
BBB INDUSTRIES : 1020278

Bushings Included: Yes
Clamps Included: Yes
Distance Between Mounting Holes (IN): 16.25
Distance Between Mounting Holes (MM): 412.75
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rod Length: 12.375
Inner Tie Rod Thread Size: M14x1.5
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.68
Input Shaft Diameter (MM): 17.32
Input Shaft Length (IN): 2.1875
Input Shaft Length (MM): 55.5625
Installation Kit Included: Yes
Manual or Power: Power
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M14x1.5
Rack Length (IN): 47.875
Rack Length (MM): 1216.025
Return Port Thread Size: M18x1.50
Sensor Included: No
Total Turns Lock To Lock: 2.813

适用车型

RAM (1)

OE号码

品牌	号码
OE	68272323A*
