BBB INDUSTRIES
1020247

第三方数据BBB INDUSTRIES : 1020247

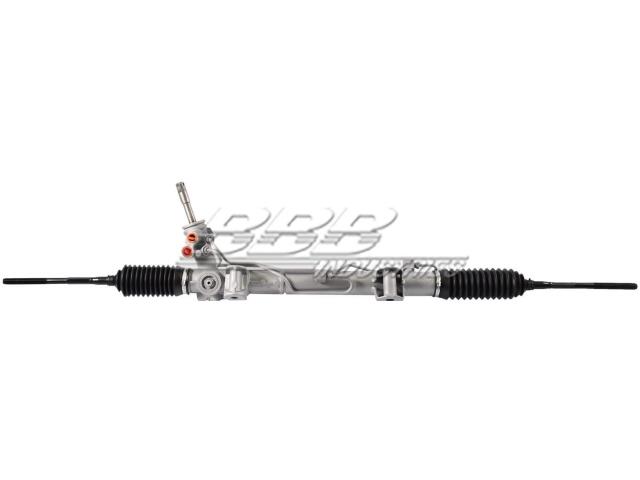

Rack and Pinion
BBB INDUSTRIES : 1020247

Bushings Included: No
Check Valve: Yes
Distance Between Mounting Holes (IN): 11.375
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rod Length: 12.25
Inner Tie Rod Thread Size: 3
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.713
Input Shaft Diameter (MM): 18.12
Input Shaft Length (IN): 3.313
Input Shaft Length (MM): 84.138
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Orientation (Center): 3:00 to 3:30
Outer Tie Rods Included: No
Pressure Port Thread Size: M18x1.50
Rack Length (IN): 47.75
Rack Length (MM): 1212.85
Return Port Thread Size: M16x1.50
Sensor Included: No
Total Turns Lock To Lock: 2.625

适用车型

DODGE (1)

OE号码

品牌	号码
OE	102-024*
