BBB INDUSTRIES
1020219

第三方数据BBB INDUSTRIES : 1020219

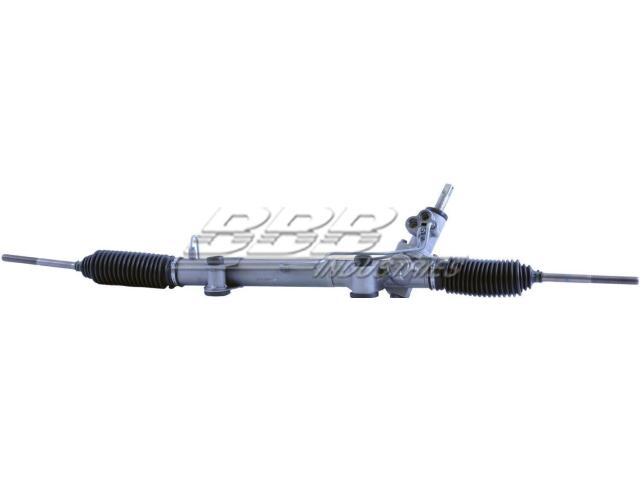

Rack and Pinion
BBB INDUSTRIES : 1020219

Bushings Included: Yes
Distance Between Mounting Holes (IN): 11.5
Distance Between Mounting Holes (MM): 292.1
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 2.5
Input Shaft Length (MM): 63.5
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M16x1.50
Rack Length (IN): 49.625
Rack Length (MM): 1260.475
Return Port Thread Size: M18x1.50
Total Turns Lock To Lock: 3.438

适用车型

JEEP (1)

OE号码

品牌	号码
OE	102-021*
OE	1932042*

品牌	号码
OE	52109970A*

品牌	号码
OE	95393*
