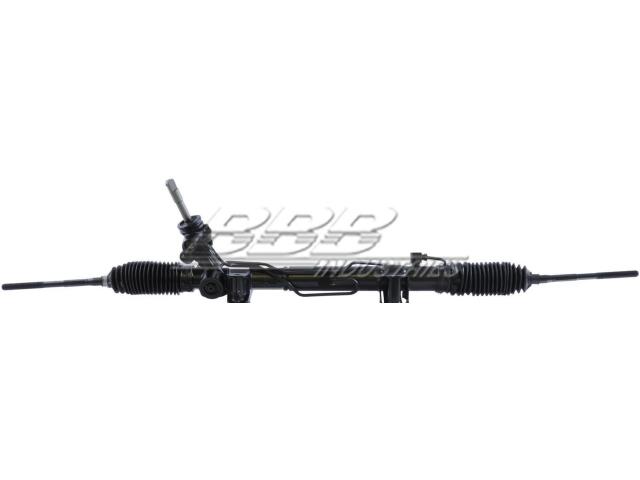

Rack and Pinion
BBB INDUSTRIES : 1020205

Bushings Included: No
Distance Between Mounting Holes (IN): 11.25
Distance Between Mounting Holes (MM): 285.75
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 3.313
Input Shaft Length (MM): 84.138
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M16x1.50
Rack Length (IN): 47.375
Rack Length (MM): 1203.325
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.50

适用车型

DODGE (1)

OE号码

品牌	号码
OE	1932042*
