BBB INDUSTRIES
1020202

第三方数据BBB INDUSTRIES : 1020202

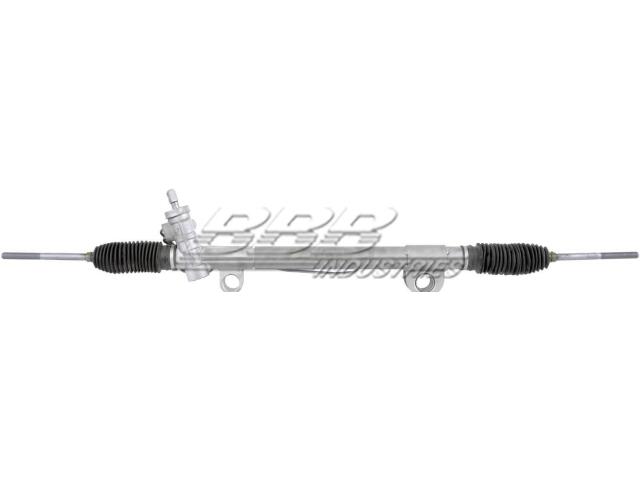

Rack and Pinion
BBB INDUSTRIES : 1020202

Bushings Included: No
Distance Between Mounting Holes (IN): 11.5
Distance Between Mounting Holes (MM): 292.1
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.982
Input Shaft Diameter (MM): 24.943
Input Shaft Length (IN): 1.593
Input Shaft Length (MM): 40.45
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M18x1.50
Rack Length (IN): 51
Rack Length (MM): 1295.4
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.438

适用车型

DODGE (1)

OE号码

品牌	号码
OE	1932041*

品牌	号码
OE	4865678A*

品牌	号码
OE	4865678A*
