BBB INDUSTRIES
1020171

第三方数据BBB INDUSTRIES : 1020171

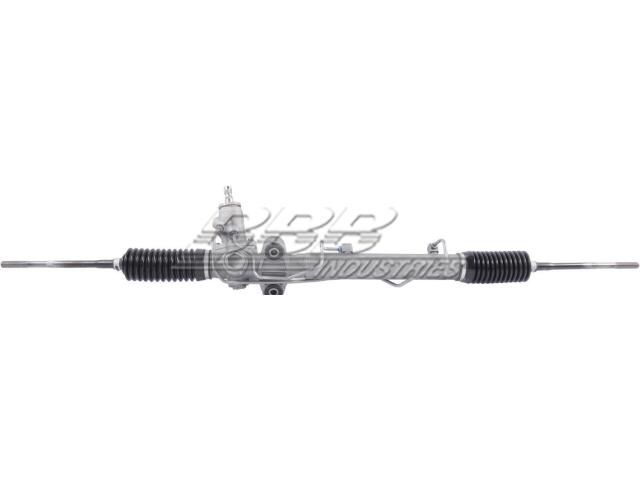

Rack and Pinion
BBB INDUSTRIES : 1020171

Bushings Included: Yes
Distance Between Mounting Holes (IN): 3.31
Distance Between Mounting Holes (MM): 84.074
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 1.438
Input Shaft Length (MM): 36.513
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M14x1.50
Rack Length (IN): 49.125
Rack Length (MM): 1247.775
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.813

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	102-017*

品牌	号码
OE	1932039*
