BBB INDUSTRIES
1010154

第三方数据BBB INDUSTRIES : 1010154

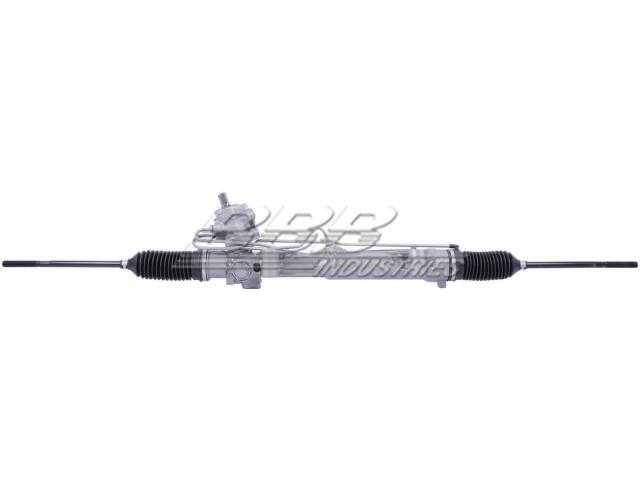

Rack and Pinion
BBB INDUSTRIES : 1010154

Bushings Included: No
Distance Between Mounting Holes (IN): 11.5
Distance Between Mounting Holes (MM): 292.1
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 1.25
Input Shaft Length (MM): 31.75
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M16x1.50
Rack Length (IN): 51.25
Rack Length (MM): 1301.75
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.938

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	101-015*

品牌	号码
OE	1932029*

品牌	号码
OE	95339*
