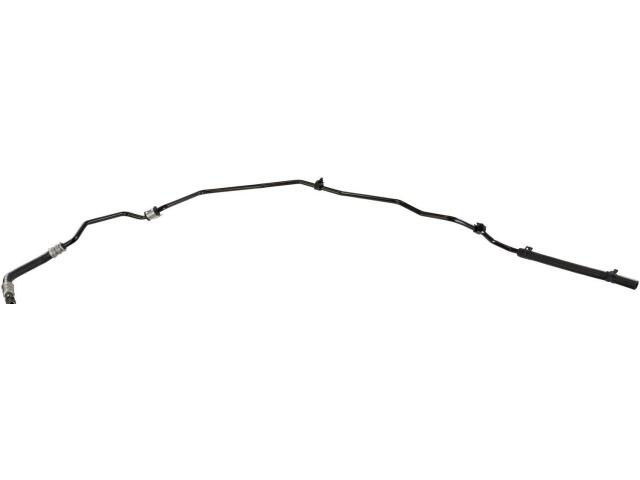

Power Steering Return Hose
REIN : PSH0595

Clamps Included: Yes
Color: Black Silver
Crush Washers Included: Yes
End 1 Inside Diameter (MM): 10.0000
End 1 Outside Diameter (MM): 18.0000
End 1 Type: Hose
End 2 Inside Diameter (MM): 10.0000
End 2 Outside Diameter (MM): 18.0000
End 2 Type: Inverted Flare
Fitting Seals Included: Not Required
Heat Shield Included: Not Required
Hose Burst Pressure PSI: 750
Hose Line Lining: Steel Rubber
Hose Line Outer Material: Steel Rubber
Hose Material: NBRCR
Hose Operating Pressure PSI: 250
Mounting Brackets Included: Yes
Pressure Switch Port Included: Not Required
Protective Shield Included: No
Protective Sleeve Included: Not Required
Tubing Finish: Zinc Alloy
Tubing Material: Carbon Steel

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	575201U00*
