REIN
PSH0572

第三方数据REIN : PSH0572

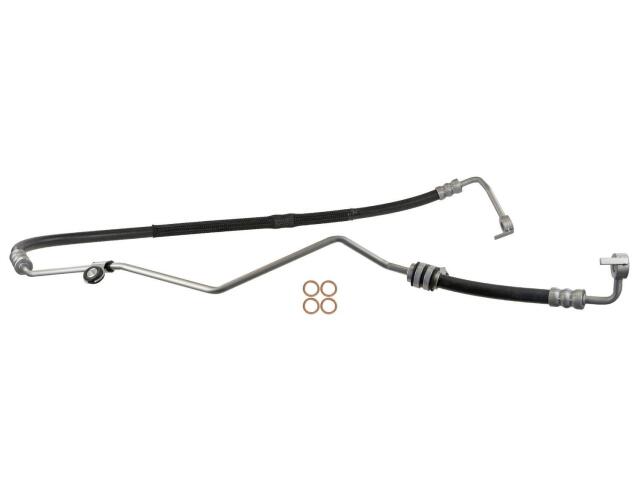

Power Steering Pressure Hose
REIN : PSH0572

Banjo Bolt Included: No
Clamps Included: Yes
Crush Washers Included: Yes
End 1 Inside Diameter (MM): 16.0000
End 1 Outside Diameter (MM): 24.0000
End 1 Type: Banjo
End 2 Inside Diameter (MM): 16.0000
End 2 Outside Diameter (MM): 24.0000
End 2 Type: Banjo
Fitting Seals Included: Not Required
Heat Shield Included: Not Required
High Pressure End 1 Type: Banjo
High Pressure End 2 Gender: Male
High Pressure End 2 Thread Diameter (MM): 16.0000
High Pressure End 2 Type: Inverted Flare
High Pressure Hose Burst Pressure PSI: 8700
High Pressure Hose Material: NBRCSMCPE
High Pressure Hose Operating Pressure PSI: 1700
Hose Burst Pressure PSI: 8700
Hose Crimp End Finish: Zinc Alloy
Hose Crimp End Material: Carbon Steel
Hose Material: NBRNBRCR
Hose Operating Pressure PSI: 1700
Low Pressure End 1 Inside Diameter (MM): 9.5000
Low Pressure End 1 Outside Diameter (MM): 17.0000
Low Pressure End 1 Type: Hose
Low Pressure End 2 Inside Diameter (MM): 9.5000
Low Pressure End 2 Outside Diameter (MM): 17.0000
Low Pressure End 2 Type: Hose
Low Pressure Hose Burst Pressure PSI: 1000
Low Pressure Hose Material: NBRCR
Low Pressure Hose Operating Pressure PSI: 250.0000
Mounting Brackets Included: Yes
Pressure Switch Port Included: Not Required
Protective Sleeve Included: Yes
Tubing Finish: Zinc Alloy
Tubing Material: Carbon Steel

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	EG2132420*

品牌	号码
OE	EG2132420*
