EDELMANN
92232E

第三方数据EDELMANN : 92232E

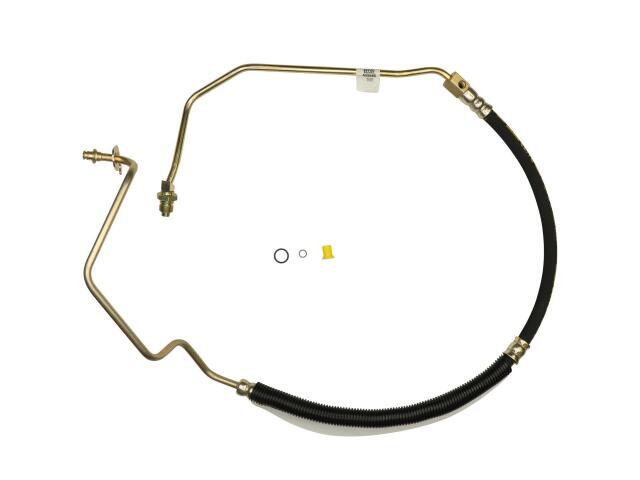

Power Steering Pressure Hose
EDELMANN : 92232E

Burst Pressure: 6000
Bushing Included: No
End 1 Gender: Male
End 1 Type: Captive O Ring
End 2 Type: Pressure Union - W/ Switch Port
Fitting Material: Steel
Hose Fitting Thread Diameter: 11.00
Hose Length: 73.75
Hose Material: Rubber
Hose Outside Diameter: .695
Hose Wall Thickness: .305
Inside Diameter: .390 IN
Length: 73.750 in
Mounting Brackets Included: Yes
Sleeve Material: Corrugated Plastic
Switch Port Included: Yes
Tube Material: Steel
Washer Included: No

适用车型

FORD (1)

MAZDA (1)

MERCURY (1)
