第三方数据SEALED POWER : H699DCP

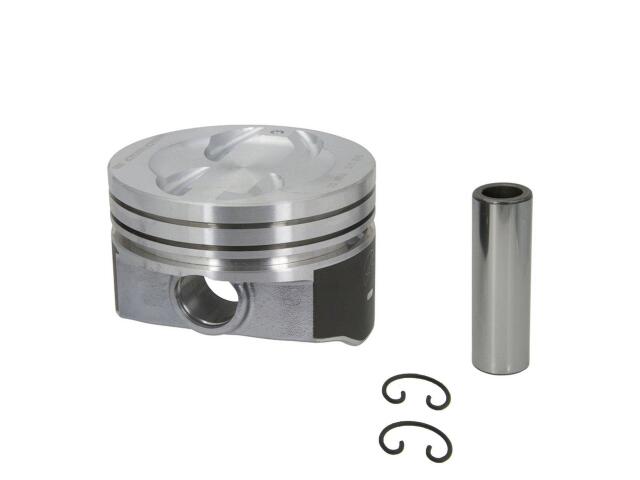

Piston
SEALED POWER : H699DCP

  • Recessed Head
  • P or F
  • 2
  • 1.50mm
  • 1
  • 3.00mm

适用车型

CHEVROLET
ASTRO
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
BLAZER
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
EXPRESS 1500
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2006
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2007
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2008
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2009
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2010
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2013
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2014
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
EXPRESS 2500
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
SILVERADO 1500
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2006
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2007
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2008
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2009
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2010
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2013
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
SILVERADO 1500 CLASSIC
4.3L V6
2007
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
GMC
JIMMY
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
SAFARI
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
SAVANA 1500
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2006
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2007
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2008
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2009
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2010
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2013
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2014
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
SAVANA 2500
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
SIERRA 1500
4.3L V6
2005
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2006
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2007
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2008
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2009
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2010
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
2013
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60
SIERRA 1500 CLASSIC
4.3L V6
2007
Hypereutectic Alloy; Duroshield Coated Skirt
0.098 IN Deep x 2.771 IN Diameter Recess; with 4 Valve Reliefs; with Machined Circlip Grooves; Use LR-63 Lock Rings For Floated Pistons, Not Included
10172839, 12522850, 88894280, WH699DCP, H699DCP, H699DCP20, H699DCP30, H699DCP40, H699DCP60

参考号

厂商 号码
ASTRA 1017283*
ASTRA 1252285*
AUTOZONE/SEALED POWER H699DC*
CLEVITE ENGINE ALL SIZES TC3402*
CLEVITE ENGINE ALL SIZES 224356*
厂商 号码
CLEVITE ENGINE ALL SIZES 9H341*
DELCO REMY AMERICA 8889428*
DELCO REMY AMERICA 1252285*
DELCO REMY AMERICA 1017283*
厂商 号码
GM GENUINE PARTS 8889428*
GM GENUINE PARTS CANADA 8889428*
SILV-OLITE 3451H*
SILV-OLITE H341*

OE号码

品牌 号码
OE WH699DC*
OE H699DCP4*
OE H699DCP2*
品牌 号码
OE H699DCP3*
OE H699DCP6*
OE 1017283*
品牌 号码
OE 1252285*
OE 8889428*
