GM GENUINE
55598380

第三方数据GM GENUINE : 55598380

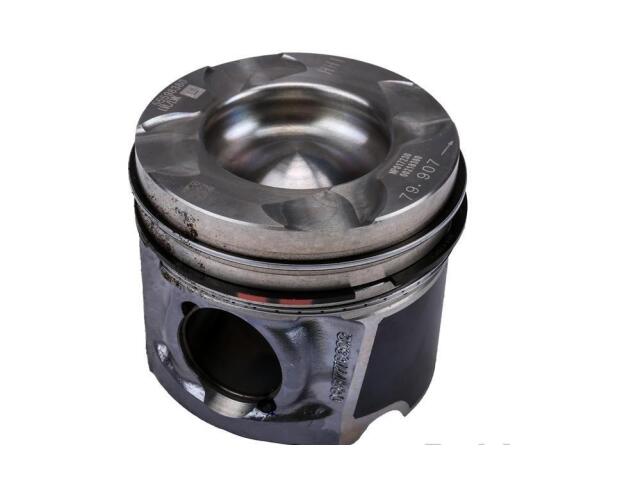

Piston
GM GENUINE : 55598380

Assembly Lubricant Included: No
Cylinder Bore Diameter (IN): 3.1476
Cylinder Bore Diameter (MM): 79.95
Diameter (IN): 3.139
Diameter (MM): 79.72
Oil Ring Thickness (In): 0.079
Oil Ring Thickness (mm): 2
Oil Spacer Ring Thickness (in): 0.079
Oil Spacer Ring Thickness (mm): 2
Oversized: Yes
Piston Head Type: Dish
Piston Inside Diameter (in): 2.9724
Piston Inside Diameter (mm): 75.5
Piston Material: Aluminum Alloy
Piston Outside Diameter (IN): 3.1459
Piston Outside Diameter (MM): 79.905
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.571
Piston Pin Inside Diameter (mm): 14.5
Piston Pin Length (in): 2.481
Piston Pin Length (mm): 63.01
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 1.142
Piston Pin Outside Diameter (mm): 29
Ring Inside Diameter (in): 2.894
Ring Inside Diameter (mm): 73.5
Ring Material: Steel
Ring Outside Diameter (in): 3.137
Ring Outside Diameter (mm): 79.69
Second Compression Ring Thickness (In): 0.059
Second Compression Ring Thickness (mm): 1.5
Skirt Length (in): 1.8189
Skirt Length (mm): 46.2
Skirt Type: Partial
Top Compression Ring Thickness (In): 0.059
Top Compression Ring Thickness (mm): 1.5

适用车型

CHEVROLET (2)

GMC (1)
