GM GENUINE
25198520

第三方数据GM GENUINE : 25198520

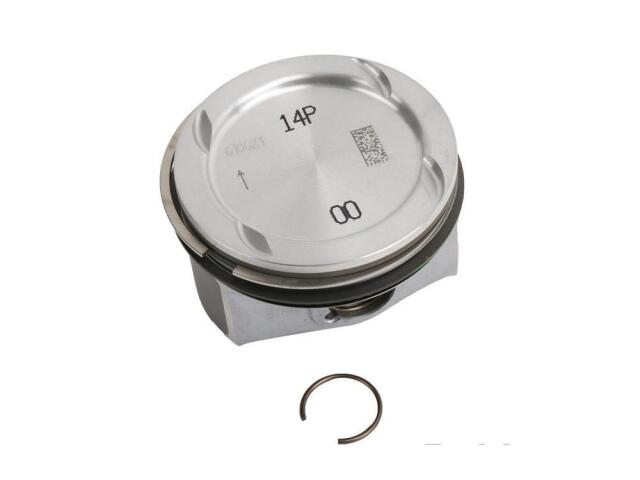

Piston
GM GENUINE : 25198520

Assembly Lubricant Included: No
Oil Ring Thickness (In): 0.018
Oil Ring Thickness (mm): 0.46
Oil Spacer Ring Thickness (in): 0.034
Oil Spacer Ring Thickness (mm): 0.86
Oversized: No
Piston Head Type: Bowl
Piston Inside Diameter (in): 2.677
Piston Inside Diameter (mm): 68
Piston Material: Aluminum
Piston Outside Diameter (IN): 2.854
Piston Outside Diameter (MM): 72.5
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.394
Piston Pin Inside Diameter (mm): 10
Piston Pin Length (in): 1.890
Piston Pin Length (mm): 48.01
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.709
Piston Pin Outside Diameter (mm): 18
Ring Inside Diameter (in): 2.618
Ring Inside Diameter (mm): 66.5
Ring Material: Steel
Ring Outside Diameter (in): 2.853
Ring Outside Diameter (mm): 72.47
Second Compression Ring Thickness (In): 0.047
Second Compression Ring Thickness (mm): 1.19
Skirt Length (in): 1.497
Skirt Length (mm): 38.03
Skirt Type: Full
Top Compression Ring Thickness (In): 0.047
Top Compression Ring Thickness (mm): 1.2

适用车型

BUICK (1)

CHEVROLET (4)

CRUZE (1)

CRUZE LIMITED (1)

SONIC (1)

TRAX (1)
