GM GENUINE
25195023

第三方数据GM GENUINE : 25195023

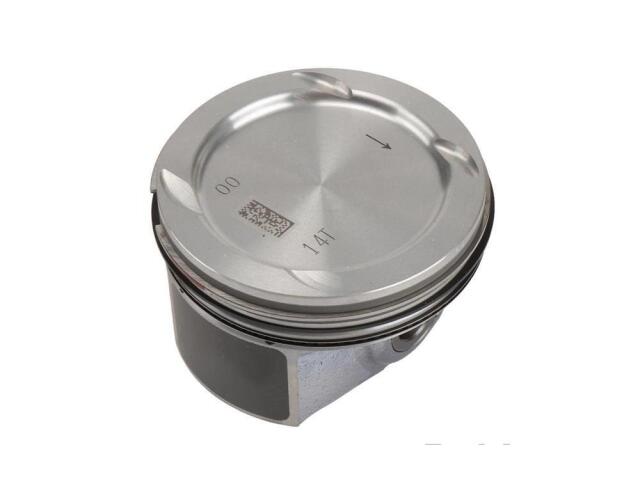

Piston
GM GENUINE : 25195023

Assembly Lubricant Included: No
Diameter (IN): 2.831
Diameter (MM): 71.9
Oil Ring Thickness (In): 0.076
Oil Ring Thickness (mm): 1.92
Oil Spacer Ring Thickness (in): 0.035
Oil Spacer Ring Thickness (mm): 0.89
Oversized: No
Piston Head Type: Dish
Piston Inside Diameter (in): 2.677
Piston Inside Diameter (mm): 68
Piston Material: Aluminum Alloy
Piston Outside Diameter (IN): 2.853
Piston Outside Diameter (MM): 72.467
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.394
Piston Pin Inside Diameter (mm): 10
Piston Pin Length (in): 1.89
Piston Pin Length (mm): 48.01
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.709
Piston Pin Outside Diameter (mm): 18
Ring Inside Diameter (in): 2.642
Ring Inside Diameter (mm): 67.1
Ring Material: Steel
Ring Outside Diameter (in): 2.823
Ring Outside Diameter (mm): 71.7
Second Compression Ring Thickness (In): 0.047
Second Compression Ring Thickness (mm): 1.19
Skirt Length (in): 0.118
Skirt Length (mm): 3
Skirt Type: Partial
Top Compression Ring Thickness (In): 0.047
Top Compression Ring Thickness (mm): 1.2

适用车型

BUICK (1)

CHEVROLET (2)
