GM GENUINE
19207288

第三方数据GM GENUINE : 19207288

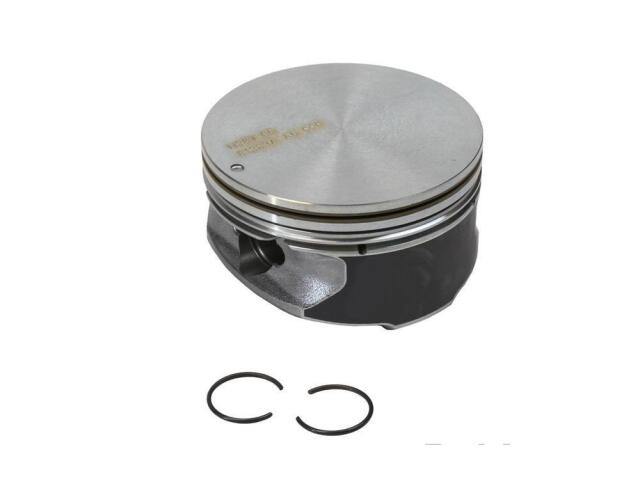

Piston
GM GENUINE : 19207288

Oversized: Yes
Piston Head Type: Flat
Piston Inside Diameter (in): 3.8779
Piston Inside Diameter (mm): 98.5
Piston Material: Aluminum Alloy
Piston Outside Diameter (IN): 4.0848
Piston Outside Diameter (MM): 103.753
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.5354
Piston Pin Inside Diameter (mm): 13.6
Piston Pin Length (in): 2.5736
Piston Pin Length (mm): 65.37
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.9431
Piston Pin Outside Diameter (mm): 23.955
Ring Material: Steel
Skirt Length (in): 1.5039
Skirt Length (mm): 38.2
Skirt Type: Partial

适用车型

CHEVROLET (3)

PONTIAC (1)
