GM GENUINE
19180413

第三方数据GM GENUINE : 19180413

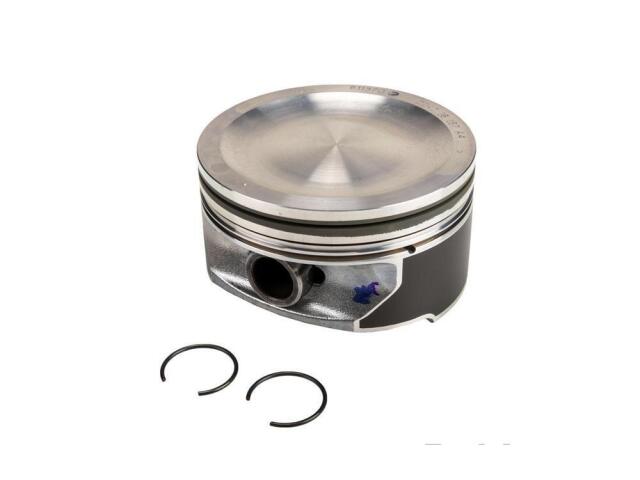

Piston
GM GENUINE : 19180413

Diameter (IN): 4.277
Diameter (MM): 108.63
Oversized: No
Piston Head Type: Dish
Piston Inside Diameter (in): 3.8779
Piston Inside Diameter (mm): 98.5
Piston Material: Aluminum Alloy
Piston Outside Diameter (IN): 4.0646
Piston Outside Diameter (MM): 103.24
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.6713
Piston Pin Inside Diameter (mm): 17.05
Piston Pin Length (in): 2.5736
Piston Pin Length (mm): 65.37
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.9431
Piston Pin Outside Diameter (mm): 23.955
Ring Material: Steel
Skirt Length (in): 1.4252
Skirt Length (mm): 36.2
Skirt Type: Partial

适用车型

CADILLAC (1)
