GM GENUINE
12688011

第三方数据GM GENUINE : 12688011

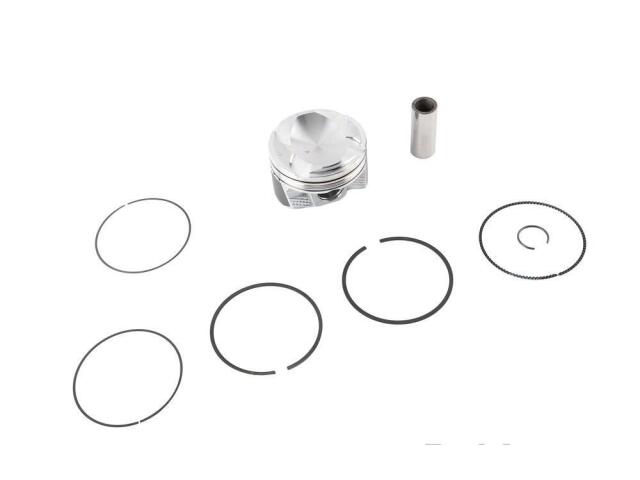

Piston
GM GENUINE : 12688011

Assembly Lubricant Included: No
Oil Ring Thickness (In): 0.02
Oil Ring Thickness (mm): 0.42
Oil Spacer Ring Thickness (in): 0.03
Oil Spacer Ring Thickness (mm): 0.8
Oversized: No
Piston Head Type: Dish
Piston Inside Diameter (in): 3.19
Piston Inside Diameter (mm): 81
Piston Outside Diameter (IN): 3.39
Piston Outside Diameter (MM): 86
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.49
Piston Pin Inside Diameter (mm): 12.5
Piston Pin Length (in): 2.2
Piston Pin Length (mm): 55.93
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.91
Piston Pin Outside Diameter (mm): 23
Piston Rings Included: Yes
Ring Inside Diameter (in): 3.14
Ring Inside Diameter (mm): 79.78
Ring Outside Diameter (in): 3.38
Ring Outside Diameter (mm): 85.96
Second Compression Ring Thickness (In): 0.04
Second Compression Ring Thickness (mm): 1.18
Top Compression Ring Thickness (In): 0.05
Top Compression Ring Thickness (mm): 1.18

适用车型

CADILLAC (2)
