GM GENUINE
12686359

第三方数据GM GENUINE : 12686359

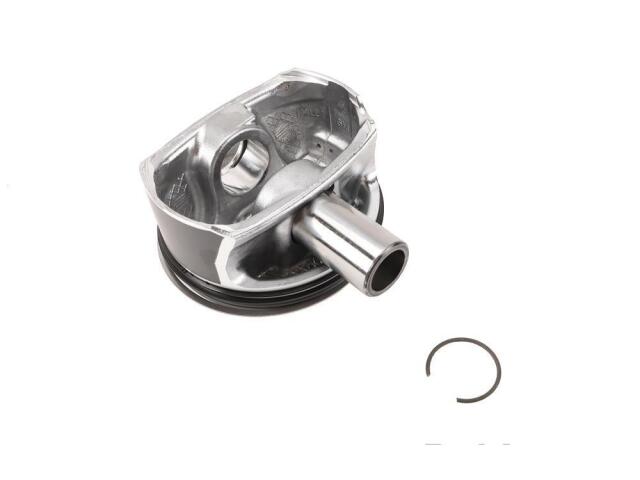

Piston
GM GENUINE : 12686359

Assembly Lubricant Included: No
Oil Ring Thickness (In): 0.01
Oil Ring Thickness (mm): 0.35
Oil Spacer Ring Thickness (in): 0.01
Oil Spacer Ring Thickness (mm): 0.27
Oversized: No
Piston Head Type: Dome
Piston Inside Diameter (in): 2.05
Piston Inside Diameter (mm): 52
Piston Outside Diameter (IN): 3.7
Piston Outside Diameter (MM): 94
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.52
Piston Pin Inside Diameter (mm): 13.15
Piston Pin Length (in): 2.08
Piston Pin Length (mm): 52.85
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.94
Piston Pin Outside Diameter (mm): 24
Piston Rings Included: Yes
Ring Inside Diameter (in): 3.46
Ring Inside Diameter (mm): 88
Ring Outside Diameter (in): 3.7
Ring Outside Diameter (mm): 94
Second Compression Ring Thickness (In): 0.04
Second Compression Ring Thickness (mm): 1.18
Top Compression Ring Thickness (In): 0.04
Top Compression Ring Thickness (mm): 0.98

适用车型

BUICK (2)

CADILLAC (4)

CHEVROLET (7)

CAMARO (1)

CAPRICE (1)

COLORADO (1)

EQUINOX (1)

IMPALA (1)

IMPALA LIMITED (1)

TRAVERSE (1)

GMC (2)
