GM GENUINE
12663172

第三方数据GM GENUINE : 12663172

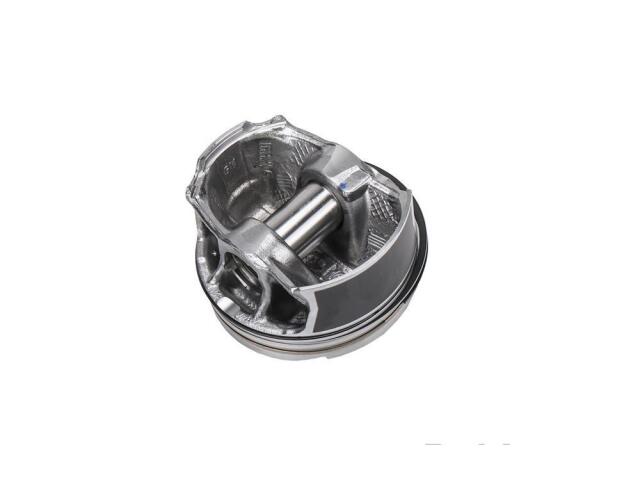

Piston
GM GENUINE : 12663172

Assembly Lubricant Included: No
Oil Ring Thickness (In): 0.01
Oil Ring Thickness (mm): 0.35
Oil Spacer Ring Thickness (in): 0.01
Oil Spacer Ring Thickness (mm): 0.2
Oversized: No
Piston Head Type: Recessed
Piston Outside Diameter (IN): 3.11
Piston Outside Diameter (MM): 79
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.43
Piston Pin Inside Diameter (mm): 10.95
Piston Pin Length (in): 1.85
Piston Pin Length (mm): 47.1
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.75
Piston Pin Outside Diameter (mm): 19
Ring Inside Diameter (in): 2.91
Ring Inside Diameter (mm): 74
Ring Material: Steel
Ring Outside Diameter (in): 3.11
Ring Outside Diameter (mm): 78.97
Second Compression Ring Thickness (In): 0.04
Second Compression Ring Thickness (mm): 1
Skirt Length (in): 1.84
Skirt Length (mm): 46.7
Skirt Type: Partial
Top Compression Ring Thickness (In): 0.05
Top Compression Ring Thickness (mm): 1.2

适用车型

BUICK (1)

CHEVROLET (1)
