GM GENUINE
12654420

第三方数据GM GENUINE : 12654420

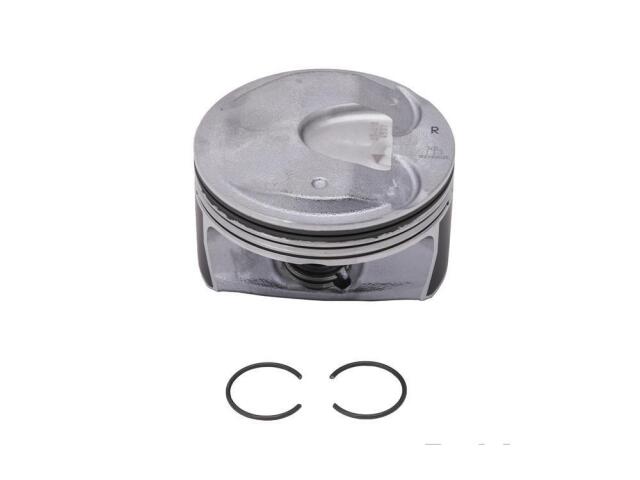

Piston
GM GENUINE : 12654420

Assembly Lubricant Included: No
Diameter (IN): 3.701
Diameter (MM): 94
Oil Ring Thickness (In): 0.097
Oil Ring Thickness (mm): 2.46
Oil Spacer Ring Thickness (in): 0.087
Oil Spacer Ring Thickness (mm): 2.2
Oversized: Yes
Piston Head Type: Dome
Piston Inside Diameter (in): 3.516
Piston Inside Diameter (mm): 89.3
Piston Material: Aluminum
Piston Outside Diameter (IN): 3.701
Piston Outside Diameter (MM): 94
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.697
Piston Pin Inside Diameter (mm): 17.7
Piston Pin Length (in): 2.081
Piston Pin Length (mm): 52.85
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.945
Piston Pin Outside Diameter (mm): 24
Ring Inside Diameter (in): 3.478
Ring Inside Diameter (mm): 88.35
Ring Material: Steel
Ring Outside Diameter (in): 3.7
Ring Outside Diameter (mm): 93.97
Second Compression Ring Thickness (In): 0.058
Second Compression Ring Thickness (mm): 1.48
Skirt Length (in): 0.188
Skirt Length (mm): 4.78
Skirt Type: Partial
Top Compression Ring Thickness (In): 0.046
Top Compression Ring Thickness (mm): 1.18

适用车型

BUICK (2)

CADILLAC (4)

CHEVROLET (7)

CAMARO (1)

CAPRICE (1)

COLORADO (1)

EQUINOX (1)

IMPALA (1)

IMPALA LIMITED (1)

TRAVERSE (1)

GMC (2)
