GM GENUINE
12654418

第三方数据GM GENUINE : 12654418

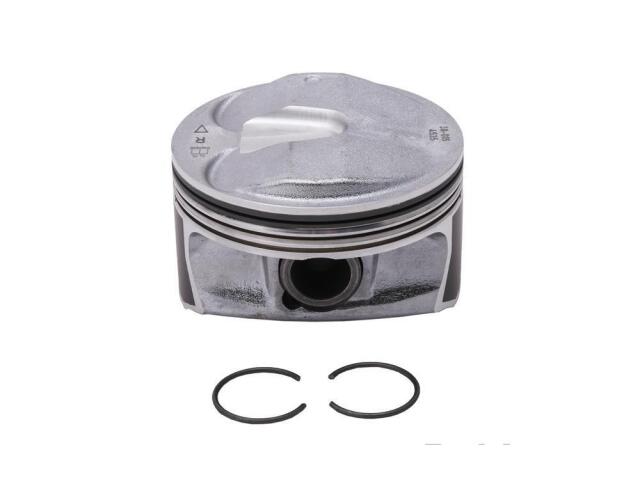

Piston
GM GENUINE : 12654418

Assembly Lubricant Included: No
Diameter (IN): 3.504
Diameter (MM): 89
Oil Ring Thickness (In): 0.059
Oil Ring Thickness (mm): 1.5
Oil Spacer Ring Thickness (in): 0.028
Oil Spacer Ring Thickness (mm): 0.72
Oversized: Yes
Piston Head Type: Dome
Piston Inside Diameter (in): 3.358
Piston Inside Diameter (mm): 85.3
Piston Material: Aluminum
Piston Outside Diameter (IN): 3.504
Piston Outside Diameter (MM): 89
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.697
Piston Pin Inside Diameter (mm): 17.7
Piston Pin Length (in): 2.081
Piston Pin Length (mm): 52.85
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.945
Piston Pin Outside Diameter (mm): 24
Ring Inside Diameter (in): 3.244
Ring Inside Diameter (mm): 82.4
Ring Material: Steel
Ring Outside Diameter (in): 3.503
Ring Outside Diameter (mm): 88.97
Second Compression Ring Thickness (In): 0.046
Second Compression Ring Thickness (mm): 1.18
Skirt Length (in): 0.162
Skirt Length (mm): 4.11
Skirt Type: Partial
Top Compression Ring Thickness (In): 0.039
Top Compression Ring Thickness (mm): 0.98

适用车型

SAAB (1)

BUICK (1)
