GM GENUINE
12591087

第三方数据GM GENUINE : 12591087

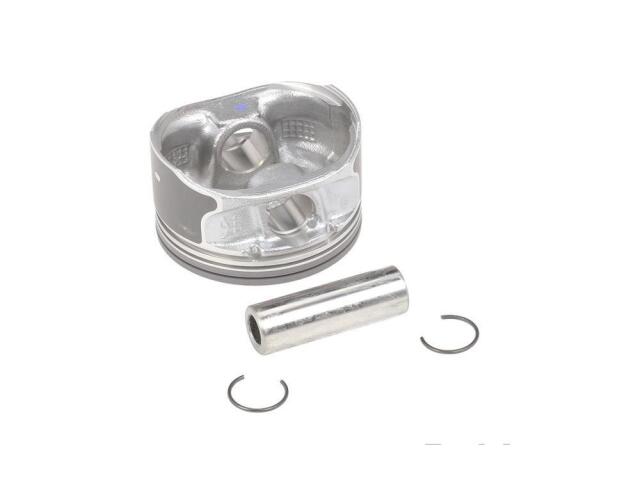

Piston
GM GENUINE : 12591087

Assembly Lubricant Included: No
Oversized: No
Piston Head Type: Dish
Piston Inside Diameter (in): 2.36
Piston Inside Diameter (mm): 60
Piston Outside Diameter (IN): 3.35
Piston Outside Diameter (MM): 85
Piston Pin Inside Diameter (in): 0.39
Piston Pin Inside Diameter (mm): 10
Piston Pin Length (in): 2.47
Piston Pin Length (mm): 62.84
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.79
Piston Pin Outside Diameter (mm): 20
Skirt Length (in): 3.38
Skirt Length (mm): 85.88
Skirt Type: Full

适用车型

CHEVROLET (5)

PONTIAC (4)

SATURN (2)
