CENTRIC
13166031

第三方数据CENTRIC : 13166031

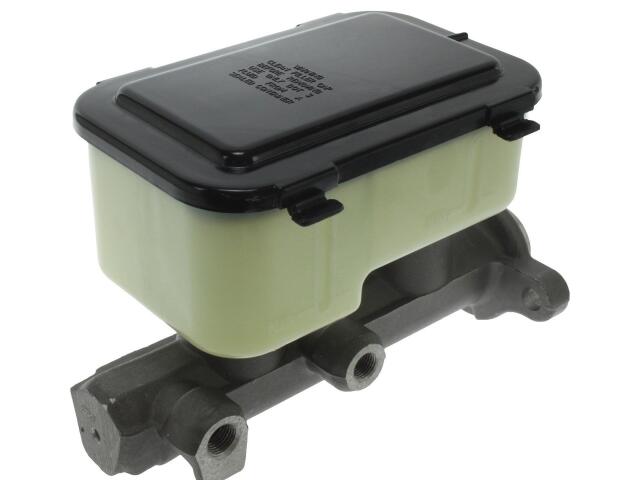

Master Cylinder
CENTRIC : 13166031

Bleeder Hoses Included: No
Brake Booster Included: No
Master Cylinder Bore Diameter (IN): 1.250
Master Cylinder Bore Diameter (MM): 31.750
Master Cylinder Cap Included: Yes
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 2
Primary Outlet Flare Type: Inverted
Primary Outlet Thread Diameter (IN): 0.500
Push Rod: Length / Depth (IN): dmpl
Pushrod Included: No
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Type: Single
Secondary Outlet Flare Type: Inverted
Secondary Outlet Thread Diameter (IN): 0.5625

适用车型

WORKHORSE (1)

参考号

厂商	号码
AIMCO	M90095*
AIMCO	M90096*
AIMCO	M90113*
FIAT	M8603*
FIAT	M86031*
BENDIX	1325*
DORMAN	M39025*

厂商	号码
DORMAN	M39027*
DORMAN	M63002*
FORMULA BLUE HYDRAULIC BRAKE PARTS	E136-71-03*
PARTS PLUS	2302-6603*
PARTS PLUS	MC25025*
PARTS PLUS	MC25178*
PARTS PLUS	MC50009*

厂商	号码
RAYBESTOS	MC39027*
RAYBESTOS	MC39036*
RAYBESTOS	MC39025*
RAYBESTOS UNBRANDED	MC39025*
RAYBESTOS UNBRANDED	MC39036*
RAYBESTOS UNBRANDED	MC39027*

OE号码

品牌	号码
OE	131-6603*
