CENTRIC
13099093

第三方数据CENTRIC : 13099093

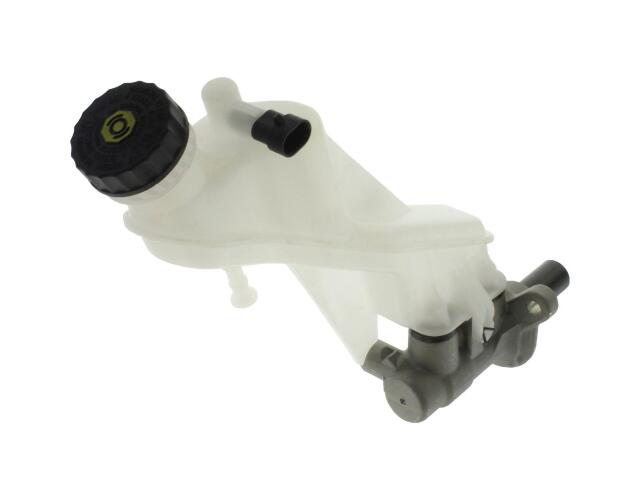

Master Cylinder
CENTRIC : 13099093

Bleeder Hoses Included: No
Brake Booster Included: No
Master Cylinder Bore Diameter (IN): 0.866
Master Cylinder Bore Diameter (MM): 22.000
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 2
Primary Outlet Flare Type: Bubble
Primary Outlet Thread Diameter (MM): 10.000
Primary Outlet Thread Pitch (MM): 1.00
Reservoir Included: No

适用车型

FIAT (2)

DODGE (1)

OE号码

品牌	号码
OE	130.9909*
OEM PART NUMBER	005193411400*

品牌	号码
OEM PART NUMBER	5193411*

品牌	号码
OEM PART NUMBER	68266373A*
