CENTRIC
13065091

第三方数据CENTRIC : 13065091

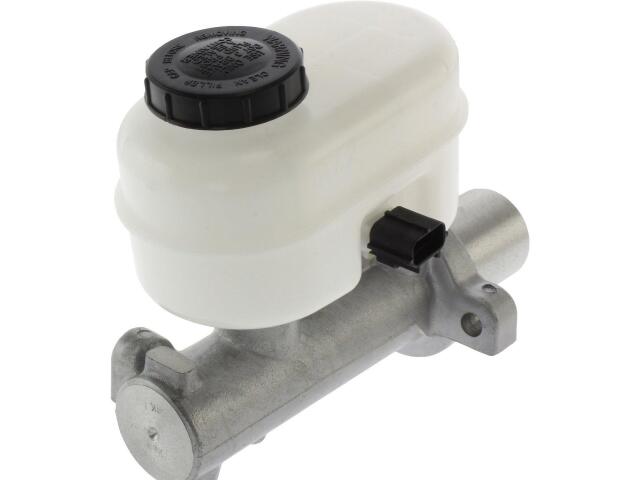

Master Cylinder
CENTRIC : 13065091

Bleeder Hoses Included: No
Brake Booster Included: No
Gasket or Seal Included: Yes
Master Cylinder Bore Diameter (IN): 1.250
Master Cylinder Bore Diameter (MM): 31.750
Master Cylinder Cap Included: Yes
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 3
Primary Outlet Flare Type: Inverted
Primary Outlet Thread Diameter (IN): 0.5625
Push Rod: Length / Depth (IN): 0.938
Pushrod Included: No
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Type: Single
Secondary Outlet Flare Type: Inverted
Secondary Outlet Thread Diameter (IN): 0.4375

适用车型

FORD (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	1475-9297*
AUTOPART INTERNATIONAL	9297*
AUTOZONE/DURALAST CONNECTORS	NM409*
BRAKEBEST SELECT MASTER CYLINDER	NMC2328*
DELCO REMY AMERICA	18M130*
DFC	355-5420*

厂商	号码
DORMAN - FIRST STOP	M63075*
FORMULA BLUE HYDRAULIC BRAKE PARTS	E135-70-09*
NAPA CANADA/UNITED BRAKE PARTS - NUP	39084*
PARTS PLUS	2302-6509*
QUALIS	ZY1413*
QUALITY PRO	100-254*

厂商	号码
RAYBESTOS	MC39084*
RAYBESTOS UNBRANDED	MC39084*
WAGNER BRAKE	R13483*
WAGNER BRAKE	F14045*
WAGNER BRAKE	MC14045*

OE号码

品牌	号码
OE	130.6509*

品牌	号码
OEM PART NUMBER	4C2Z2140A*
