CENTRIC
13061122

第三方数据CENTRIC : 13061122

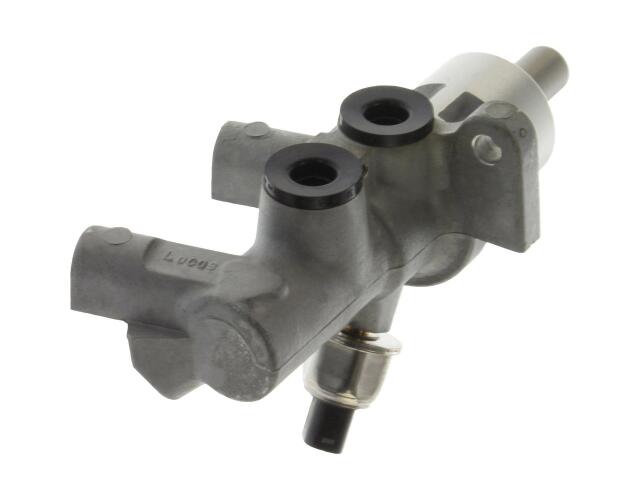

Master Cylinder
CENTRIC : 13061122

Bleeder Hoses Included: No
Brake Booster Included: No
Gasket or Seal Included: Yes
Master Cylinder Bore Diameter (IN): 1.000
Master Cylinder Bore Diameter (MM): 25.400
Master Cylinder Cap Included: No
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 2
Primary Outlet Flare Type: Bubble
Primary Outlet Thread Diameter (MM): 12.000
Primary Outlet Thread Pitch (MM): 1.00
Push Rod: Length / Depth (IN): 1.74
Pushrod Included: No
Reservoir Included: No
Reservoir Material: Plastic
Secondary Outlet Flare Type: Bubble
Secondary Outlet Thread Diameter (MM): 12.000
Secondary Outlet Thread Pitch (MM): 1.00

适用车型

LINCOLN (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER MASTER CYL	10-365*
ADVANCE/CARQUEST WEAREVER MASTER CYL	64273*
ADVANCE/WAGNER BRAKES	MC14235*
AUTOPART INTERNATIONAL	8303*
AUTOPART INTERNATIONAL	1475-8303*
AUTOZONE/DURALAST CONNECTORS	NM415*

厂商	号码
BRAKEBEST	10-365*
BRAKEBEST SELECT MASTER CYLINDER	NMC9017*
CARQUEST WEAREVER MASTER CYLINDERS	10-365*
CASTING NUMBERS	230*
DFC	355-5500*
PARTS PLUS	2302-6112*

厂商	号码
QUALIS	ZY1422*
QUALITY PRO	100-379*
WAGNER BRAKE	R13523*
WAGNER BRAKE	R13539*
WAGNER BRAKE	F14235*
WAGNER BRAKE	MC14235*

OE号码

品牌	号码
OE	130.6112*

品牌	号码
OEM PART NUMBER	6W4Z2140*

品牌	号码
OEM PART NUMBER	3W4Z2140B*
