CENTRIC
13050036

第三方数据CENTRIC : 13050036

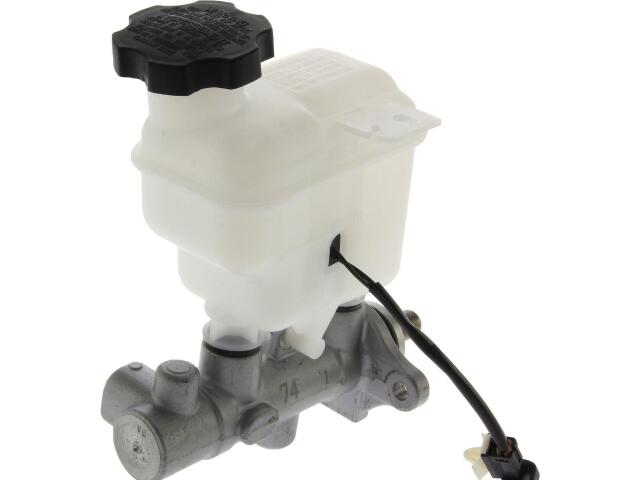

Master Cylinder
CENTRIC : 13050036

Bleeder Hoses Included: No
Brake Booster Included: No
Gasket or Seal Included: Yes
Master Cylinder Bore Diameter (IN): 1.000
Master Cylinder Bore Diameter (MM): 25.400
Master Cylinder Cap Included: Yes
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 2
Primary Outlet Flare Type: Bubble
Primary Outlet Thread Diameter (MM): 12.000
Primary Outlet Thread Pitch (MM): 1.00
Push Rod: Length / Depth (IN): 1.56
Pushrod Included: No
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Type: Single
Secondary Outlet Flare Type: Bubble
Secondary Outlet Thread Diameter (MM): 12.000
Secondary Outlet Thread Pitch (MM): 1.00

适用车型

KIA (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER MASTER CYL	11-462*
ADVANCE/CARQUEST WEAREVER MASTER CYL	99632*
AUTOPART INTERNATIONAL	1475-42480*
AUTOZONE/RAYBESTOS	MC39133*
BRAKEBEST	11-462*

厂商	号码
BRAKEBEST SELECT MASTER CYLINDER	NMC9014*
CARQUEST WEAREVER MASTER CYLINDERS	11-462*
DFC	355-2103*
PARTS PLUS	2302-5003*

厂商	号码
QUALITY PRO	100-376*
RAYBESTOS UNBRANDED	MC39133*
WAGNER BRAKE	R13544*
WAGNER BRAKE	R13552*

OE号码

品牌	号码
OE	130.5003*

品牌	号码
OEM PART NUMBER	585101D05*
