CENTRIC
13050019

第三方数据CENTRIC : 13050019

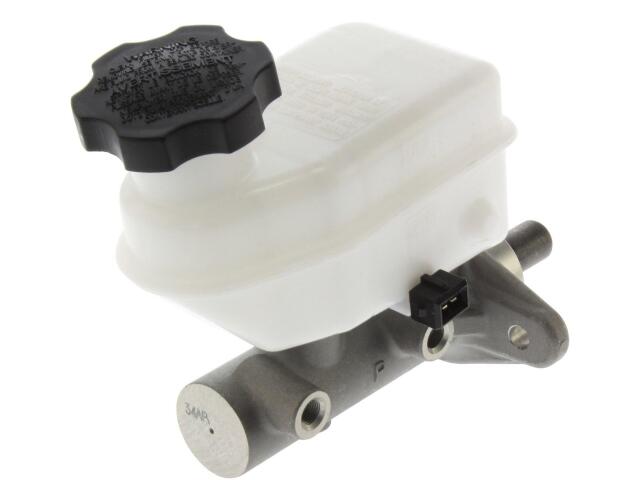

Master Cylinder
CENTRIC : 13050019

Bleeder Hoses Included: No
Brake Booster Included: No
Master Cylinder Bore Diameter (IN): 1.063
Master Cylinder Bore Diameter (MM): 26.988
Master Cylinder Cap Included: Yes
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 2
Primary Outlet Flare Type: Bubble
Primary Outlet Thread Diameter (MM): 10.000
Primary Outlet Thread Pitch (MM): 1.00
Push Rod: Length / Depth (IN): 1.67
Pushrod Included: No
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Type: Single
Secondary Outlet Flare Type: Bubble
Secondary Outlet Thread Diameter (MM): 10.000
Secondary Outlet Thread Pitch (MM): 1.00

适用车型

KIA (1)

参考号

厂商	号码
ADVANCE/CARQUEST PREMIUM AC	MCA63038*
ADVANCE/CARQUEST WEAREVER	MCA63038*
ADVANCE/CARQUEST WEAREVER BRAKES	MCA63038*
AUTOPART INTERNATIONAL	1475-20477*
AUTOPART INTERNATIONAL	20477*
AUTOZONE/RAYBESTOS	MC39112*
BRAKEBEST	MC63038*
BRAKEBEST SELECT MASTER CYLINDER	NMC2233*
CARQUEST/ WEAREVER BRAKES	MCA63038*

厂商	号码
CARQUEST/AIMCO	E15221*
CARQUEST/RAYBESTOS	E15221*
DFC	355-2101*
DORMAN	M63038*
DORMAN - FIRST STOP	M63038*
FORMULA BLUE HYDRAULIC BRAKE PARTS	E135-55-02*
PARTS MASTER/DORMAN	MC63038*
PARTS PLUS	2302-5001*

厂商	号码
PRONTO/DORMAN	M63038*
QUALITY PRO	NMC2233*
QUALITY PRO	100-254*
RAYBESTOS	MC39112*
RAYBESTOS UNBRANDED	MC39112*
RAYBESTOS UNBRANDED	E15221*
TRU TORQUE	M63038*
WAGNER BRAKE	R13522*

OE号码

品牌	号码
OE	130-5001*

品牌	号码
OEM PART NUMBER	591203E35*
