CENTRIC
13050018

第三方数据CENTRIC : 13050018

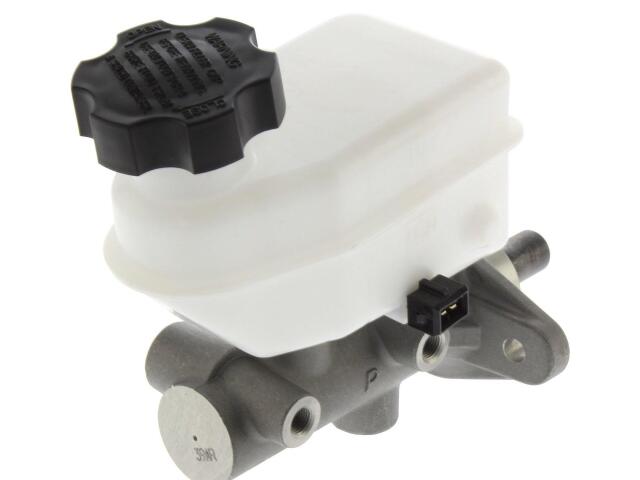

Master Cylinder
CENTRIC : 13050018

Bleeder Hoses Included: No
Brake Booster Included: No
Master Cylinder Bore Diameter (IN): 1.063
Master Cylinder Bore Diameter (MM): 26.988
Master Cylinder Cap Included: Yes
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 4
Primary Outlet Flare Type: Bubble
Primary Outlet Thread Diameter (MM): 10.000
Primary Outlet Thread Pitch (MM): 1.00
Push Rod: Length / Depth (IN): 1.67
Pushrod Included: No
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Type: Single
Secondary Outlet Flare Type: Open
Secondary Outlet Thread Diameter (MM): 16.000
Secondary Outlet Thread Pitch (MM): 1.50

适用车型

KIA (1)

参考号

厂商	号码
ADVANCE/WAGNER BRAKES	MC14234*
AUTOPART INTERNATIONAL	1475-20477*
AUTOPART INTERNATIONAL	20477*
BRAKEBEST SELECT MASTER CYLINDER	NMC9030*
DFC	355-2101*
DORMAN	M63038*

厂商	号码
DORMAN - FIRST STOP	M63038*
FORMULA BLUE HYDRAULIC BRAKE PARTS	E135-55-02*
MANDO	17A104*
PARTS PLUS	2302-5001*
QUALITY PRO	100-393*

厂商	号码
RAYBESTOS	MC39107*
RAYBESTOS UNBRANDED	MC39107*
WAGNER BRAKE	MC14234*
WAGNER BRAKE	R13490*
WAGNER BRAKE	F14234*

OE号码

品牌	号码
OE	130.5001*

品牌	号码
OEM PART NUMBER	591203E25*
