CENTRIC
13045221

第三方数据CENTRIC : 13045221

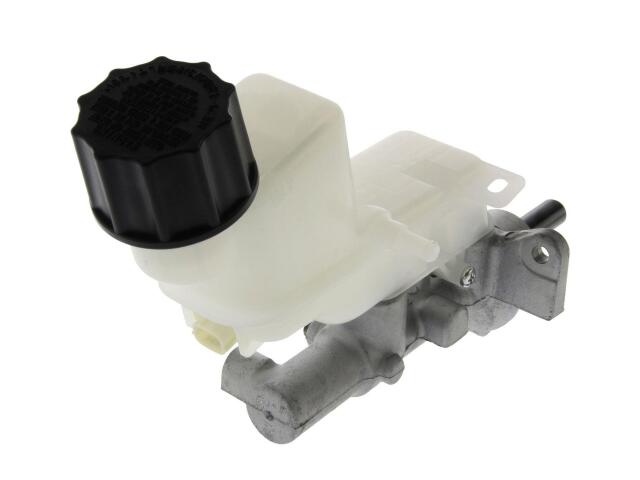

Master Cylinder
CENTRIC : 13045221

Bleeder Hoses Included: No
Brake Booster Included: No
Gasket or Seal Included: Yes
Master Cylinder Bore Diameter (IN): 0.813
Master Cylinder Bore Diameter (MM): 20.638
Master Cylinder Cap Included: Yes
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 2
Primary Outlet Flare Type: Inverted
Primary Outlet Thread Diameter (MM): 10.000
Primary Outlet Thread Pitch (MM): 1.00
Push Rod: Length / Depth (IN): 1.87
Pushrod Included: No
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Type: Single
Secondary Outlet Flare Type: Inverted
Secondary Outlet Thread Diameter (MM): 10.000
Secondary Outlet Thread Pitch (MM): 1.00

适用车型

MAZDA (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	1475-8388*
AUTOPART INTERNATIONAL	8388*
AUTOZONE/DURALAST CONNECTORS	NM5533*

厂商	号码
DFC	355-8004*
PARTS PLUS	2302-4522*

厂商	号码
QUALITY PRO	100-440*
WAGNER BRAKE	R13521*

OE号码

品牌	号码
OE	130.4522*

品牌	号码
OEM PART NUMBER	GJ6E43400*

品牌	号码
OEM PART NUMBER	GJ6L4340Z*
