CENTRIC
13045120

第三方数据CENTRIC : 13045120

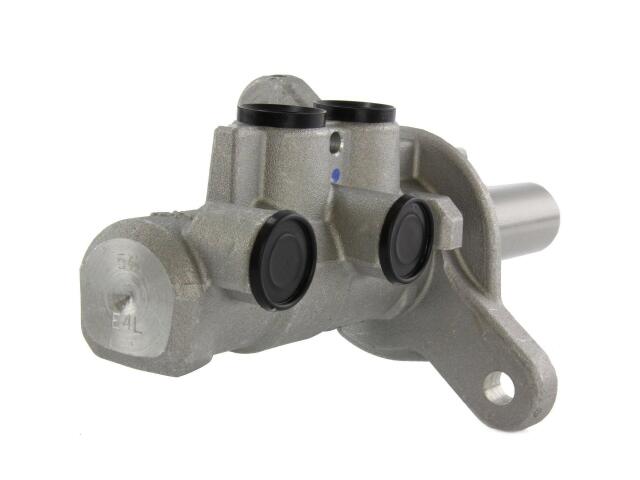

Master Cylinder
CENTRIC : 13045120

Bleeder Hoses Included: No
Brake Booster Included: No
Gasket or Seal Included: Yes
Master Cylinder Bore Diameter (IN): 0.813
Master Cylinder Bore Diameter (MM): 20.638
Master Cylinder Cap Included: No
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 2
Primary Outlet Flare Type: Inverted
Primary Outlet Thread Diameter (MM): 10.000
Primary Outlet Thread Pitch (MM): 1.00
Push Rod: Length / Depth (IN): 1.62
Pushrod Included: No
Reservoir Included: No
Reservoir Material: Plastic
Secondary Outlet Flare Type: Inverted
Secondary Outlet Thread Diameter (MM): 12.000
Secondary Outlet Thread Pitch (MM): 1.00

适用车型

MAZDA (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	1475-23295*
CARQUEST/ WEAREVER BRAKES	MCA63062*
CASTING NUMBERS	22649*
CASTING NUMBERS	020422363*

厂商	号码
DFC	355-8002*
FORMULA BLUE HYDRAULIC BRAKE PARTS	E135-50-12*
FORMULA BLUE HYDRAULIC BRAKE PARTS	E135-50-12*
PARTS PLUS	2302-4511*

厂商	号码
PARTS PLUS	2302-4512*
RAYBESTOS	MC39125*
RAYBESTOS UNBRANDED	MC39125*

OE号码

品牌	号码
OE	130.4512*
OEM PART NUMBER	EG234340*

品牌	号码
OEM PART NUMBER	L23243400*

品牌	号码
OEM PART NUMBER	L2324340*
