STABILUS
4B084609

第三方数据STABILUS : 4B084609

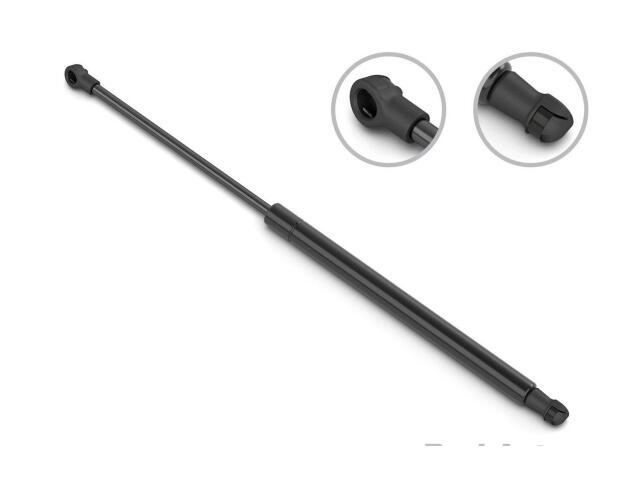

Lift Support
STABILUS : 4B084609

Compressed Length (IN): 10.512
Compressed Length (MM): 267
Extended Length (IN): 17.008
Extended Length (MM): 432
Force (N): 655
Force (lbs): 147
Hardware Kit: No
Rod Connection: Plastic Socket
Rod Dia (IN): 0.315
Rod Diameter (mm): 8
Rod End Attachment Dia (IN): 0.394
Rod End Attachment Dia (MM): 10
Shaft Connection: Plastic Socket
Tube Dia (IN): 0.748
Tube Diameter (mm): 19
Tube End Attach Dia (IN): 0.394
Tube End Attach Dia (mm): 10
Tube connection: Plastic Socket

适用车型

SCION (1)

参考号

厂商	号码
FCS AUTOMOTIVE	8459*

厂商	号码
STABILUS	08460*

OE号码

品牌	号码
OE	4B-08460*
SCION	689500W26*

品牌	号码
SCION	689500W26*
TOYOTA	689500W26*

品牌	号码
SCION	689600W25*
SCION	689600W25*
