ASTRA
5101040

第三方数据ASTRA : 5101040

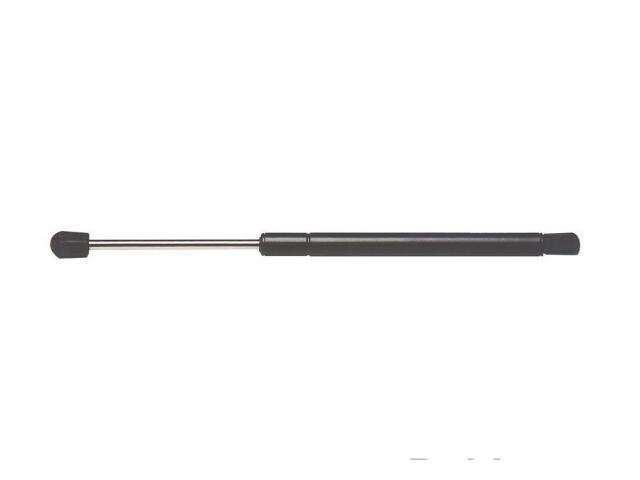

Lift Support
ASTRA : 5101040

Compressed Length (IN): 7.87
Compressed Length (MM): 198.1
Cylinder Outside Diameter (MM): 19
Damping Type: Gas
End 1 Material: Nylon
End 1 Size (MM): 10
End 1 Type: Ball Socket
End 2 Material: Nylon
End 2 Size (MM): 8
End 2 Type: Ball Socket
Extended Length (IN): 11.5
Fully Open Length (IN): 11.5in
Fully Open Length (mm): 292.1mm
INTERNAL REBOUND SPRING: No
Inner Shaft Diameter (IN): 0.315
Inner Shaft Diameter (mm): 8
Maximum Force (LB): 152
Outer Cylinder Color: Black
Outer Cylinder Diameter (in): 0.748
Outer Cylinder Diameter (mm): 19
Outer Cylinder Material: Steel
Stroke Length (IN): 3.63
Universal Or Specific Fit: Specific

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	510-104*

品牌	号码
OE	1920315*
